DIN Plug Adhesive Patch Automobile Car hidden AM FM Radio Antenna
for Vehicle Truck Stereo Receiver Head Unit
•Working Frequency: FM 80MHz-108MHz, AM 520KHz-1710KHz; Gain:3dbi

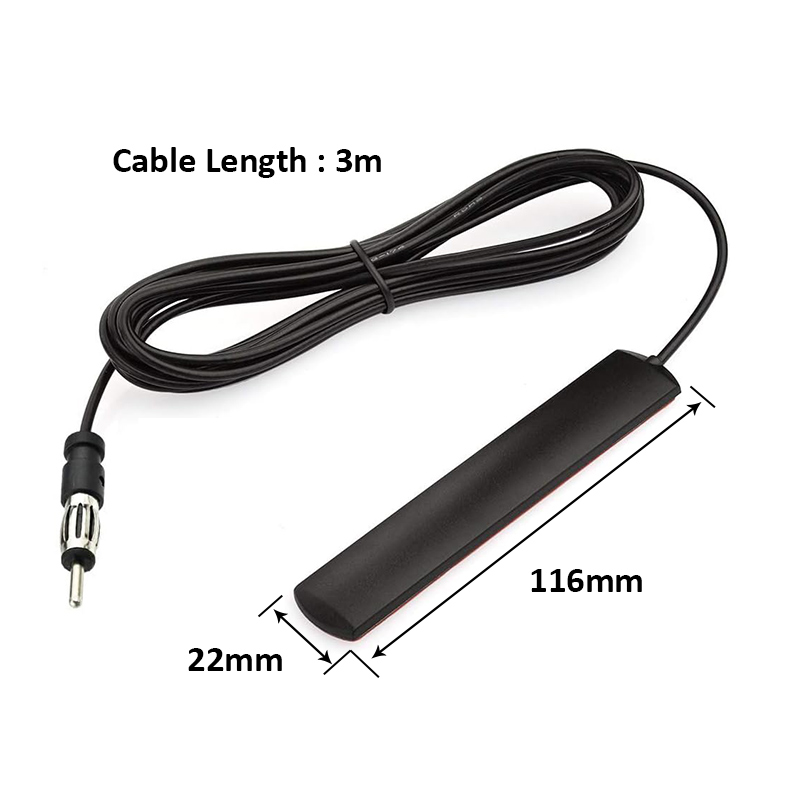

•Extension Cable Length: 9.8 feet / 3 meters; Antenna Connector:DIN
male; Additional Adapter: DIN 41585 female to ISO
•Application: fits most car stereo receivers; assists to improve
radio reception and receive crystal clear AM/FM

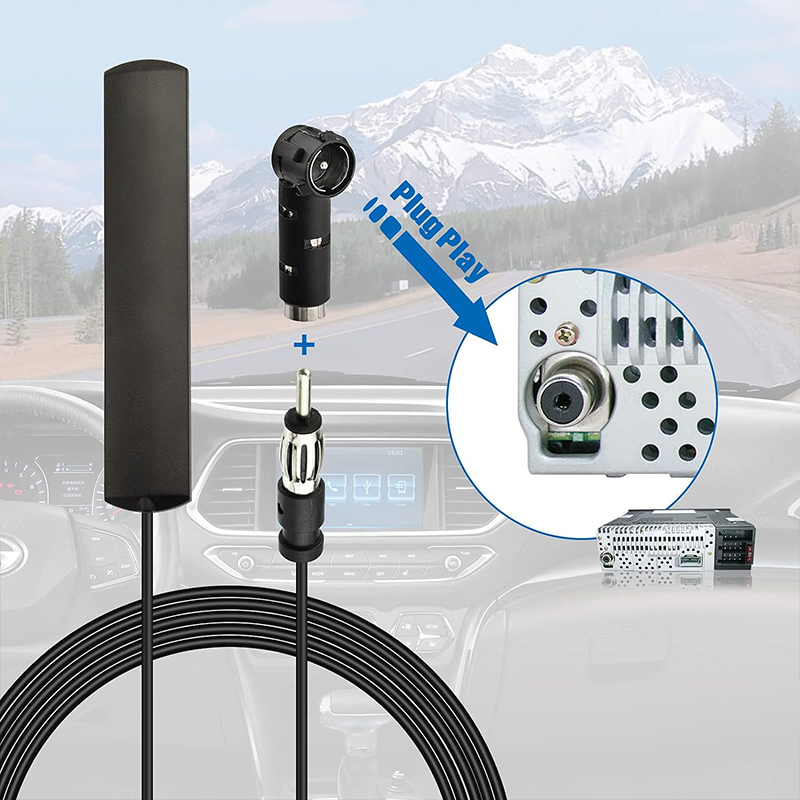

•Mounting Method: remove adhesive tap, stick the antenna on
windshield /window
•Package Includes: 1pc FM Antenna 75ohm, 1pc DIN to ISO Adapter
Specifications:
Universal car hidden stereo radio antenna, fits most vehicles.
Antenna Material: ABS shell + copper wire
Input Impedance: 75 ohm
VSWR: < 2.0
Antenna Cable: 3m/10 feet Cable;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the
antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation
environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to
Changping railway station by
CRH China Railway High-speed.
Q : Do you make OEM products?
A : Yes,we can do.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’
requirements.
The customers need to charge the handing fee.Or we can provide
customers the SGS report of the
material for free.
